Add Motor eBike Conversion: Controller & Drivetrain Guide

Adding a motor to an existing bike sits at the intersection of mechanical competence and electrical literacy, two skill sets that most component guides treat separately. The Motors & Drivetrain section of Ten27 covers both, and this guide focuses specifically on the controller and drivetrain hardware that makes an add-motor ebike conversion functional rather than just theoretically possible.

Controller selection determines how well any conversion actually performs. A mismatch between voltage, wattage, and motor type produces at best mediocre results and at worst a system that runs hot and fails early.

What to Look For in an Add-Motor Ebike Conversion

Voltage and Wattage Compatibility

The controller is the electrical brain of any conversion. It takes battery input and regulates current to the motor, and the two must be matched precisely. Running a 48V controller on a 36V battery reduces output and can damage the controller’s capacitors over time. Running a controller rated below your motor’s continuous watt draw creates thermal stress that shows up on long climbs before it shows up as an outright failure.

Match your battery voltage first, then select a controller whose continuous amperage rating supports your motor’s peak draw without running at ceiling. A 30A controller paired with a 750W motor running on 48V has reasonable thermal headroom. The same controller paired with a 1000W motor at peak load is running close to its limit every time you hit full throttle on a climb.

Sensor Type: Hall Sensor vs. Sensorless

Most hub motors built for ebike conversion come with hall sensors, three-wire position sensors embedded in the stator that tell the controller exactly where the rotor is at any given moment. Hall-sensor drive is smoother at low speeds and more efficient under load. Sensorless controllers infer rotor position from back-EMF, which works reasonably well at speed but produces cogging and hesitation at low RPM, noticeable on tight switchbacks or slow technical terrain.

Verify whether your motor uses hall sensors before ordering a controller. Controllers that support both modes give you a fallback if a sensor fails mid-ride, which matters more on remote trails than on road commutes.

Display Integration and Control Logic

Standalone controllers without a display give you no real-time feedback on battery state, assist level, or motor temperature. For any build where the motor is doing meaningful work, grades above six percent, loads above 100kg, or ride durations over an hour, a display that shows voltage, current draw, and assist mode is close to mandatory.

LCD display panels vary in what they expose. Entry-level units show speed, battery bars, and assist level. Better units show actual voltage, trip wattage, and error codes. Error code visibility alone justifies the step up, diagnosing a hall sensor fault without error codes means guesswork and manual continuity testing.

Mid-Drive vs. Hub Motor Considerations

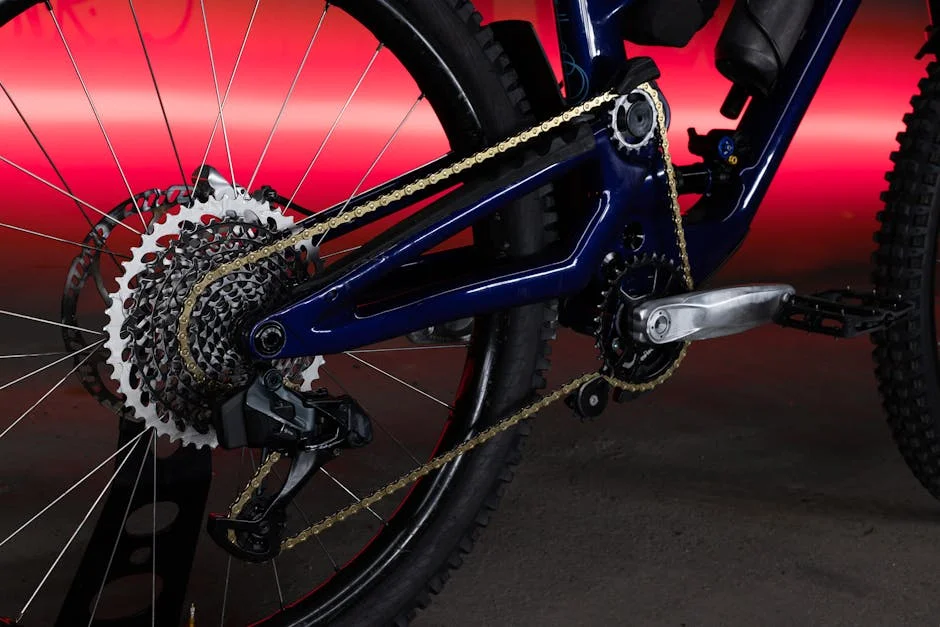

Mid-drive conversions and hub motor conversions have different drivetrain demands. Hub motors are electrically and mechanically isolated from the drivetrain, the controller talks to the motor, and the drivetrain is largely uninvolved except for cadence sensing. Mid-drive motors run through the crank, which means crank arm compatibility, bottom bracket interface, and chainline all become critical variables.

ISIS-interface mid-drive motors, including Bosch Gen4, Yamaha PW-X3, and Bafang M620, require crank arms with the specific 10-spline ISIS interface and the correct spindle length for your Q-factor. Getting the crank length wrong by 10mm changes pedaling dynamics enough to notice immediately. Getting the interface wrong means the crank arm won’t install at all. Exploring the full range of electric bike components before committing to a mid-drive platform is worth the time, the drivetrain compatibility chain is longer than it looks.

Top Picks

Brushless Controller, 30A Brushless Motor Controller for 1000W Power Waterproof Square Controller

The Brushless Controller, 30A Brushless Motor Controller for 1000W Power Waterproof Square Controller is positioned for higher-wattage hub motor conversions where waterproofing and current headroom matter. Square-wave controllers at this amperage are the standard approach for budget-to-mid-range conversion builds, they’re simpler than sine-wave controllers, less smooth at low speed, but more tolerant of motor winding variation and easier to replace when something fails.

Owner reports on this unit point to reliable performance in 36V and 48V configurations. The waterproofing matters practically, a controller mounted under a downtube or in a frame bag sees road spray and condensation that kills unsealed units within a season. Verified buyers note the wiring harness connectors are appropriately sized for 1000W loads, which is not universal in this controller category.

The 30A continuous rating gives enough headroom for a 750W motor at 48V without thermal stress. Running it at the ceiling with a true 1000W motor under sustained climbing load is a different calculation, field reports suggest it handles intermittent peaks better than sustained draws at maximum rated wattage. Match the controller to your actual motor specs rather than the maximum listed rating.

Check current price on Amazon.

24V 36V 48V Ebike Controller Kit 500W 25A Brushless Motor Controller and Ebike LCD Display Control Panel

The case for the 24V 36V 48V Ebike Controller Kit 500W 25A Brushless Motor Controller and Ebike LCD Display Control Panel is straightforward for builders working across voltage systems: multi-voltage compatibility reduces the number of decisions you have to commit to before the build is complete. A 24V test bench that later gets upgraded to a 48V battery pack doesn’t require a controller swap.

The bundled LCD display is the differentiating factor for first-time conversion builders. Rather than sourcing controller and display separately, which introduces connector compatibility risks, this kit provides a matched pair. Verified buyers consistently note the display shows voltage readout clearly, which is the most useful real-time metric for battery management during a ride.

At 500W and 25A, this controller is not a high-performance unit. It is well-matched to hub motors in the 350W, 500W range on bikes primarily used on roads or mild trails. Builders chasing meaningful assist on sustained climbs with heavier loads should account for the wattage ceiling before committing to this platform.

Check current price on Amazon.

PROWHEEL Ebike ISIS Crank Arm

Mid-drive conversions live or die on crank arm compatibility, and the PROWHEEL Ebike ISIS Crank Arm addresses the part of the build that most conversion guides gloss over. ISIS mid-drive motors, Bosch Gen4, Yamaha PW-X3 and PW-X2, Bafang M620, Brose Standard and MAG, Panasonic GX0, require crank arms that match the 10-spline ISIS interface precisely. Generic mountain bike crank arms won’t install.

PROWHEEL offers this arm in six lengths: 127mm, 140mm, 152mm, 160mm, 170mm, and 175mm. That range matters because mid-drive motor housings create ground clearance and Q-factor constraints that differ from standard bottom bracket shells. Shorter lengths are relevant for cargo and step-through frames where a 170mm arm creates pedal strike risk. Verified buyers across Bosch Gen4 and Bafang M620 builds report correct fitment on both platforms, which is meaningful given how inconsistently ISIS tolerances are applied across the aftermarket.

This is a drivetrain component, not an electrical one, no controller spec or voltage rating applies here. What matters is crank length relative to your inseam, motor housing clearance relative to your chainstay, and Q-factor relative to your natural pedaling stance. Get those three measurements before ordering.

Check current price on Amazon.

Buying Guide

Match the Controller to the Battery First

Every controller specification, voltage range, continuous amperage, peak amperage, is meaningless unless it’s evaluated against the battery pack you’re actually running. Nominal voltage and maximum continuous discharge amperage from the battery must both fall within the controller’s operating range. A 48V controller connected to a 52V nominal pack will see 58V at full charge, outside the spec window for many budget controllers and a path to capacitor failure inside six months.

The safest approach is to specify the battery first, then select a controller designed for that voltage range with at least 20 percent headroom on continuous amperage above your motor’s rated draw.

Understand Waveform Type Before Buying

Square-wave controllers are cheaper, simpler, and more widely available. They drive the motor with abrupt phase switching that produces audible cogging at low speeds, acceptable on a road commuter, noticeable on slow technical terrain. Sine-wave controllers modulate phase current smoothly, producing quieter, more efficient operation at low RPM with better low-speed torque response.

For pavement and moderate trail use, square-wave is fine. For technical terrain where low-speed control matters, the kind of riding that defines Front Range singletrack, sine-wave is worth the step up. Both controller types are widely covered across the motors and drivetrain components category.

Verify Connector Standards Before Assembly

Ebike conversion kits from different manufacturers use different connector standards, Anderson, XT60, JST, and proprietary formats all appear in this market without clear labeling. Mismatched connectors are the most common source of failed conversions that have nothing wrong with the electrical components themselves.

Before any controller purchase, identify the connector format on your motor’s phase wires and hall sensor harness. Cross-reference those formats against the controller’s wiring diagram. Adapters exist for most combinations, but each adapter is a potential failure point in a system that already has meaningful electrical load.

Crank Arm Length Is a Biomechanical Decision

Crank length selection for mid-drive conversions is part biomechanics, part motor clearance geometry. Standard road and mountain bike crank lengths run 165mm, 175mm based on inseam. Mid-drive motor housings introduce a second constraint: the arm must clear the motor case through the full rotation without contact, and the resulting Q-factor must be compatible with the rider’s natural hip-width pedaling stance.

Measure the motor housing width and compare it against the manufacturer’s recommended crank length range before ordering. A crank arm that’s 10mm too long can cause pedal strike on technical terrain. One that’s too short reduces leverage and changes pedaling cadence at a given speed.

Display Functionality and PAS Configuration

Pedal assist systems require configuration, the number of assist levels, the sensitivity of the cadence sensor response, the cutoff speed for motor assist. Entry-level LCD displays handle this through button menus that vary by manufacturer. Mid-range displays expose more parameters and often allow torque sensor integration if your build includes one.

For builds intended to function as full ebikes rather than throttle-only conversions, confirm the controller supports PAS input from a cadence or torque sensor before purchasing, and verify the display’s menu allows assist curve adjustment. Default PAS configurations from budget kits frequently deliver abrupt engagement that feels mechanical rather than natural.

Frequently Asked Questions

What voltage controller do I need for my conversion?

Match the controller’s voltage rating to your battery’s nominal voltage, then verify the controller’s maximum input voltage exceeds the pack’s full-charge voltage. A 48V nominal pack charges to approximately 54.6V. Controllers rated for 48V should specify a maximum input of at least 60V to provide a safe operating margin. Running a controller at or above its rated ceiling shortens component life rapidly and creates fire risk with lithium cells.

Can I use a 30A controller with a 500W motor?

Yes, and it’s often a sensible choice. Running a 500W motor on a 30A controller at 48V gives the motor more peak power than its nameplate rating, which improves hill-climbing response but requires verifying the motor’s winding insulation is rated for the resulting heat. Verified buyer reports on this combination suggest good performance for mid-length climbs. For sustained high-load use, monitor motor temperature and back off assist if the motor case becomes too hot to hold.

What’s the difference between the brushless controller kit with LCD and buying components separately?

The matched kit eliminates connector compatibility risk between controller and display. Sourced separately, you’re responsible for verifying that the display protocol, typically SW900 or SW102, matches what the controller supports. Field reports from the conversion community indicate connector and protocol mismatches are the leading cause of display-related build failures. For first builds, the bundled kit is the lower-risk entry point.

Which ISIS crank arm length should I choose for a Bosch Gen4 mid-drive?

Bosch Gen4 motor documentation specifies a crank length range of 160mm, 175mm for standard builds. Riders with shorter inseams or on step-through frames may need to evaluate 152mm or 160mm to maintain ground clearance through the pedal stroke. The PROWHEEL ISIS Crank Arm covers all of these lengths. Measure from your motor housing to the chainstay and confirm the arm clears the full rotation before finalizing length selection.

Do I need a torque sensor or is a cadence sensor adequate?

A cadence sensor detects whether the cranks are turning and provides a binary assist signal, motor on or motor off based on pedaling presence. A torque sensor measures how hard you’re pushing and scales assist proportionally, producing a more natural riding feel. For road and light trail use, cadence sensing is adequate. For technical terrain where assist modulation during slow, precise moves matters, torque sensing produces noticeably better results.
